2020+ Duramax Engine Oil Filter Deep

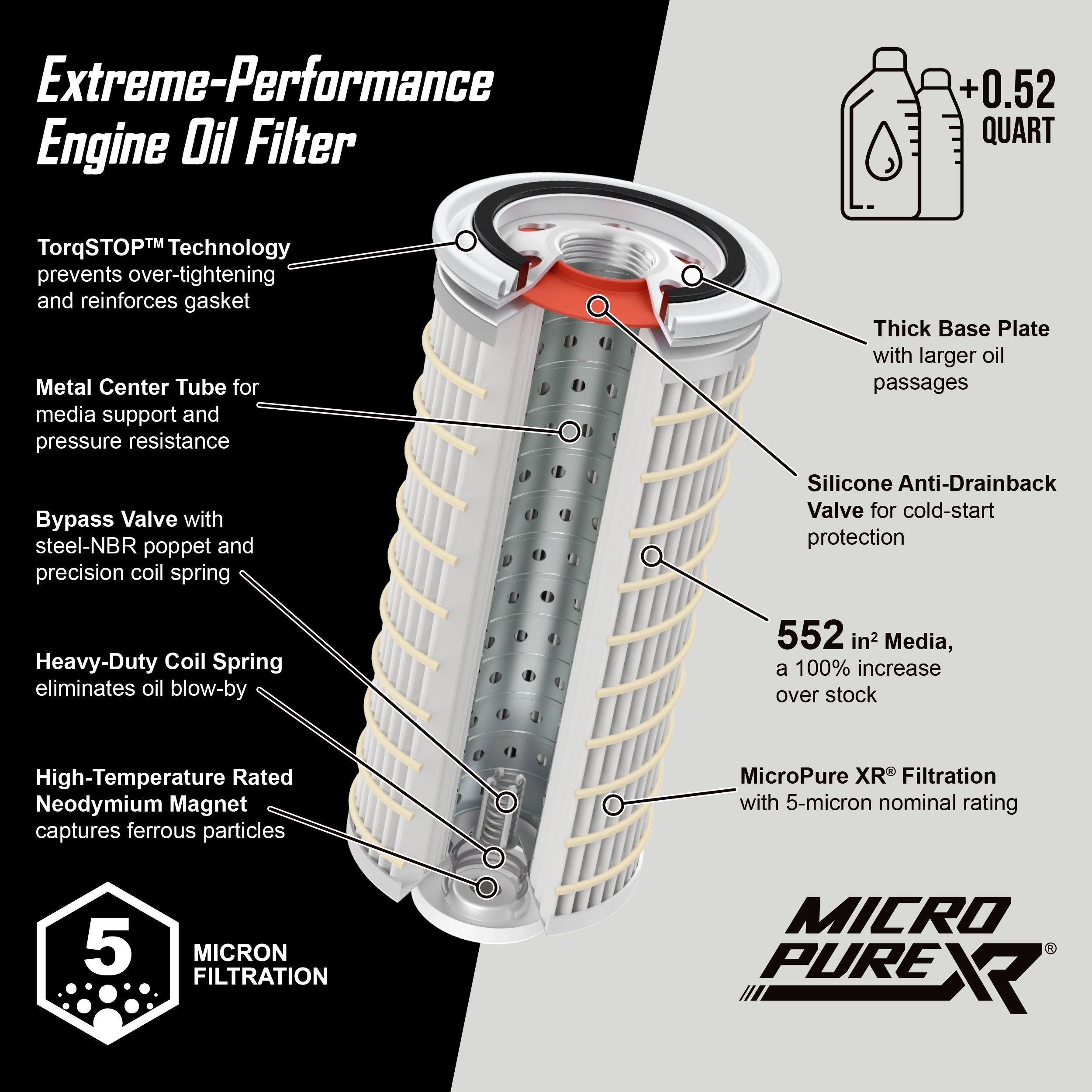

This brand new oversize PPE Filter has double the specially engineered filter media equaling 522 square inches. A perforated metal center core provides media support. Blow-by is eliminated by a coil spring. This filter also includes an integrated magnet to catch ferrous metals and a silicone anti-drain-back valve to prevent the passage of dirty oil. The bypass valve a stiffer spring and a rubber seal. The thicker base plate also has 49% larger passages for higher flow.
The OEM PF26 filter comes up short with only 259 square inches of 25-30 micron filtration capability. The stock filter has no center core support which can lead to media collapse. The simple leaf spring design to secure the oil seal loses tension and can lead to dirty oil blow-by. The OEM filter bypass valve comes with no seal of any kind.
This oversize filter requires the use of the 114002700 PPE Fuel Pump Relocation Bracket (2020+ L5P)
- 522 square inches of specially engineered 5 micron media
- Thicker threaded plate with 49% larger oil passages
- Silicone anti-drain-back valve
- Perforated metal center tube provides core-strength for filter media
- Bypass valve (OEM required) has a stiffer spring and a rubber seal
- Coil spring eliminates oil blow-by
- Integrated internal magnet with retainer
- Compatible with synthetic and conventional oils
